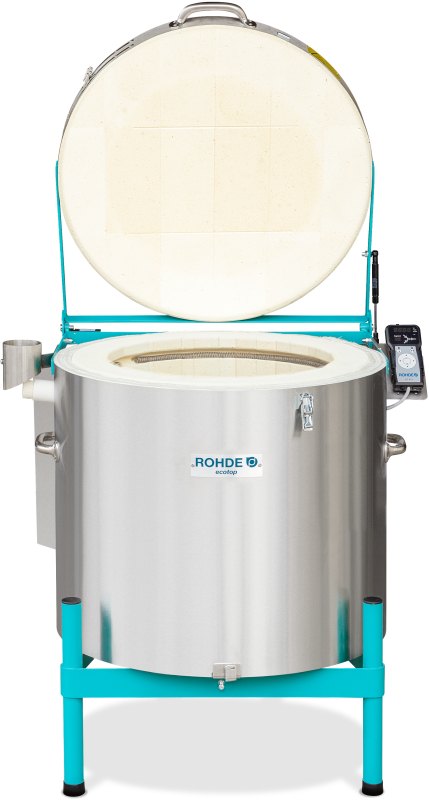

Rohde Ecotop 80S Kiln
Description
Efficient, safe and economical.
The Ecotop 80 S Toploader has a volume of 80 litres and is a kiln from the Ecotop series suitable for temperatures to 1320°C.
The future-oriented models from the Ecotop series are among the most recent developed kiln range of ROHDE. The Ecotop is currently one of the most economical kilns on the market and features a new and unique insulation concept that allows for very high energy efficiency.
The 2-layer insulation structure featuring a high-quality microporous 35 mm back insulation can be safely fired to stoneware temperatures.
Special features of the Ecotop 80 S:
- 80 l volume
- application temperatures up to 1290 °C
- 2-layer insulation concept with 35 mm microporous insulating board
- Particularly high energy efficiency
- Reversible kiln stand, handy and practical
- Pressure spring-supported opening mechanism for the lid
- Power control effected by silent, low-wear solid-state relays with an external cooling element
Specifications
Max Temp °C - 1320
Application Temp °C - 1290
Capacity (l) - 80L
Int Dimensions (mm) - ø470 x 455(h)
Ext Dimensions (mm) - W-805 x D-795 x H-775
Output - 6 kW
Current - 27A
Electrical Connection
Weight - 99kg
Also available for a three phase supply.
Delivery Details & Guarantee
- Delivery times subject to availability
- Delivery is to your driveway only and does not include installation. Please consider that you may need help to situate the kiln.
- Delivered directly from the supplier. If you order other items at the same time as your kiln, they will arrive separately.
- Delivery is an all day delivery, please contact us if you need a timed delivery window as there may be a charge.
Our Palletised Delivery Guidance shows you what to expect upon delivery.
On arrival see how your Rohde Toploader is packed.
Guarantee
- 3 Year Manufacturers Warranty (not including elements).
Controller
Programmer ST 310
- 32 programs
- 2 controlled heating ramps / 1 controlled cooling ramp + soak per segment
- Soak periods up to 99 hours 59 mins
- Ramp rates from 1 to 999°/ hour + FULL
- USB interface and Wifi module to evaluate and save data with ROHDEgraph and ROHDE myKiln App
- Ideal for glass or ceramics use
- Programs can be altered while firing
- Program pause and advance facilities
- Keyboard lockable
- Delayed start facility – up to 99 hours 59 mins
- Power failure recovery
- Energy used display
- Setpoint display
- Alarm buzzer
- °C/°F operation
- USB interface for data logging
Ext. dimensions (W x D x H)80 x 165 mm
