Rohde Ecotop 95S Kiln
Facebook Twitter Email Pinterest Telegram

Description

Efficient, safe and economical.

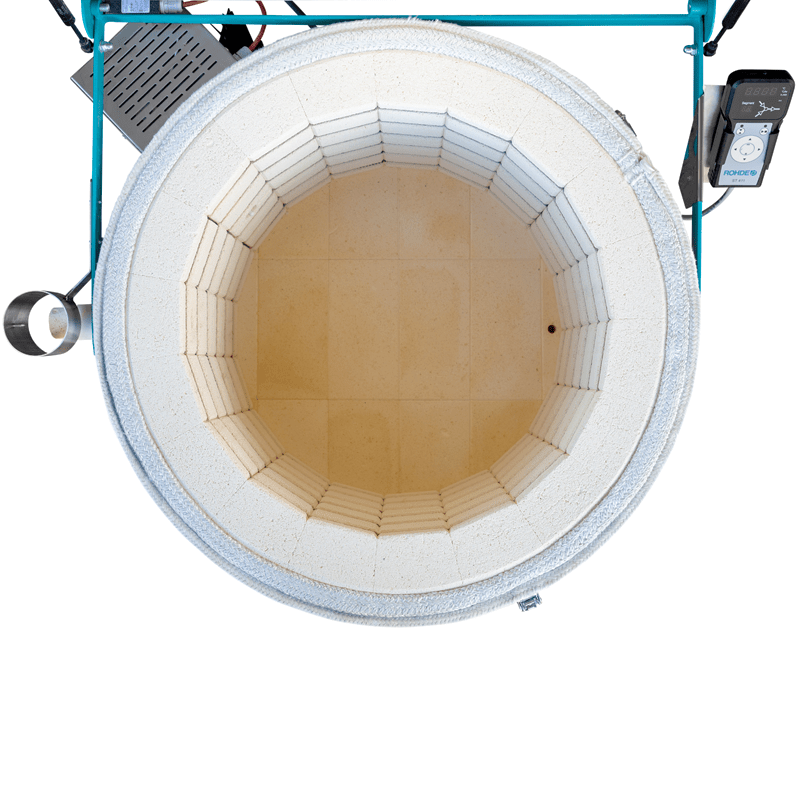

The Ecotop 95 S Toploader has a volume of 95 litres and is a kiln from the Ecotop series suitable for temperatures to 1320°C.

The future-oriented models from the Ecotop series are among the most recent developed kiln range of ROHDE. The Ecotop is currently one of the most economical kilns on the market and features a new and unique insulation concept that allows for very high energy efficiency.

The 2-layer insulation structure featuring a high-quality microporous 35 mm back insulation can be safely fired to stoneware temperatures.

Special features of the Ecotop 95 S:

  • 95 l volume
  • Application temperatures up to 1290 °C
  • 2-layer insulation concept with 35 mm microporous insulating board
  • Particularly high energy efficiency
  • Reversible kiln stand, handy and practical
  • Pressure spring-supported opening mechanism for the lid
  • Power control effected by silent, low-wear solid-state relays with an external cooling element

  •

Specifications

Max Temp °C - 1320

Application Temp °C - 1290

Capacity (l) - 95L

Int Dimensions (mm) - ø520 x 455(h)

Ext Dimensions (mm) - W-855 x D-855 x H-775

Output - 7.3 kW

Current

Electrical Connection

Weight - 113kg

Also available for a three phase supply.

Delivery Details & Guarantee

  • Delivery times subject to availability
  • Delivery is to your driveway only and does not include installation. Please consider that you may need help to situate the kiln.
  • Delivered directly from the supplier. If you order other items at the same time as your kiln, they will arrive separately.
  • Delivery is an all day delivery, please contact us if you need a timed delivery window as there may be a charge.

Our Palletised Delivery Guidance shows you what to expect upon delivery.

On arrival see how your Rohde Toploader is packed.

Guarantee

  • 3 Year Manufacturers Warranty (not including elements).

Controller

ST310

  • 32 programs with 2 segments
  • 2 controlled heating ramps, 1 controlled soak period and 1 controlled cooling ramp



ST411

  • 32 programs with up to 32 segments each
  • 1 additional switch output
  • 1 controlled heating/cooling ramp + soak period per segment



Both Controllers

  • Current ROHDE controllers are optimised for operation with a PV system (ST 411 PV)
  • Soak times up to 99 hours 59 mins
  • Ramp rates from 1 to 999°C/h or “FULL”
  • USB port and Wi-Fi module for data logging via the ROHDEgraph and the ROHDE myKiln App / SolarReady (PV / photovoltaics)
  • ROHDE SolarReady configuration optional
  • Programs can be altered while firing
  • Program pause and advance function
  • Lockable keypad
  • Program start delay facility – up to 99 hours 59 mins
  • Recovery in the event of a power failure
  • Displays energy used
  • Setpoint display
  • Alarm buzzer
  • Temperature values can be displayed in °C or °F
  • ROHDE CPC 14 connector
