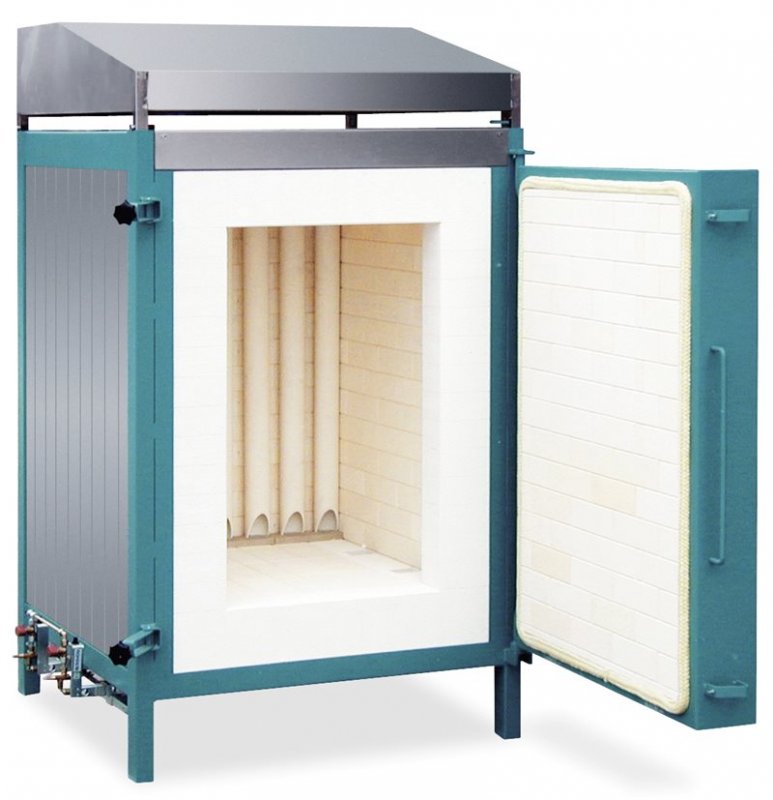

Rohde Front Loading Gas Kiln KG Series

Item: KG-SERIES

Write the first review

Description
Specification
Furniture Sets
Delivery Details & Guarantee

Description

Inclusive of propane gas pot burner, thermocouple and thermocouple GMH 3210

Gas-fired Frontloaders from the KG series comprise serval models with kiln volumes between 250 and 1000 litres. These kilns were designed for use in workshops. Based on electric frontloaders, the entire steel construction is equipped with in-frame ventilation made of stainless steel sheets. The R-SiC ceiling support “System ROHDE” prevents crakcs and particles falling from the ceiling onto the ware.

Downdraft flame control technology ensures even temperature distribution also in the KG series. The extremely silent high-performance intermediate pressure burners were developed specially for gas-fired ROHDE Frontloaders. They ensure an optimal temperature rise even in the high temperature range. The gas fittings including safety technology are pre-installed for connection to gas bottles or gas lines according to DVGW (DVGW German Technical and Scientific Association for Gas and Water). A thermocouple with temperature meter is supplied with the kiln.

You can choose the ROHDE Servo Jet equipment for firing a Frontloader from the KG series with natural gas.

Special Features of the KG Series:

Downdraft flame control technology
Stainless steel in-frame ventilation resulting in low external temperatures and corrosion protection
Stainless steel hood
Flame baffle plate to protect the kiln construction in the burner area
Exhaust air handle setting using a guiding scale

Special Equipment:

Oxygen probe for atmospheric measurement
CO Alarm and monitoring device
ROHDE Servo Jet equipment for working with NATURAL GAS
stable and robust

View other products in Raku & Gas Kilns »

Specification

Model KG-250 A

Max Temp 1320oC

Internal Dimensions (mm) W-540 x D-670 x H-760

External Dimensions (mm) W-1190 x D-1035 x H-1880 (includes detachable stainless steel hood)

Output 40kW

Burners 2

Kiln Shelf Size(mm) W-600 x D-500

Weight 590kg

---

Model KG-340 A

Max Temp 1320oC

Internal Dimensions (mm) W-700 x D-760 x H-760

External Dimensions (mm) W-1510 x D-1240 x H-1880 (includes detachable stainless steel hood)

Output 80kW

Burners 4

Kiln Shelf Size(mm) W-550 x D-340 (2 per layer)

Weight 800kg

---

Model KG-500 A

Max Temp 1320oC

Internal Dimensions (mm) W-610 x D-870 x H-980

External Dimensions (mm) W-1420 x D-1360 x H-2210 (includes detachable stainless steel hood)

Output 80kW

Burners 4

Kiln Shelf Size(mm) W-560 x D-380 (2 per layer)

Weight 900kg

---

Model KG-750 A

Max Temp 1320oC

Internal Dimensions (mm) W-830 x D-890 x H-1140

External Dimensions (mm) W-1640 x D-1390 x H-2360 (includes detachable stainless steel hood)

Output 80kW

Burners 4

Kiln Shelf Size(mm) W-400 x D-400 (4 shelves per layer)

Weight 1020kg

Furniture Sets

Model: KG 250A

4 x 600mm x 500mm kiln shelves
18 x 25mm props
18 x 50mm props
18 x 75mm props
18 x 100mm props

Model: KG 340A

4 x 550mm x 340mm kiln shelves (2 shelves per layer)
18 x 25mm props
18 x 50mm props
18 x 75mm props
18 x 100mm props

Model: KG 500A

5 x layers - 560mm x 380mm kiln shelves (2 shelves per layer)
24 x 25mm props
24 x 50mm props
24 x 75mm props
24 x 100mm props

Model: KG 750A

5 x layers - 400mm x 400mm kiln shelves (4 shelves per layer)
30 x 25mm props
30 x 50mm props
30 x 75mm props
30 x 100mm props

Delivery Details & Guarantee

Delivery times subject to availability
Delivery is to your driveway only and does not include installation. Please consider that you may need help to situate the kiln.
Delivered directly from the supplier. If you order other items at the same time as your kiln, they will arrive separately.
Delivery is an all day delivery, please contact us if you need a timed delivery window as there may be a charge.
Our Palletised Delivery Guidance shows you what to expect upon delivery.
Guarantee: 3 Year Manufacturers Warranty (not including elements).
